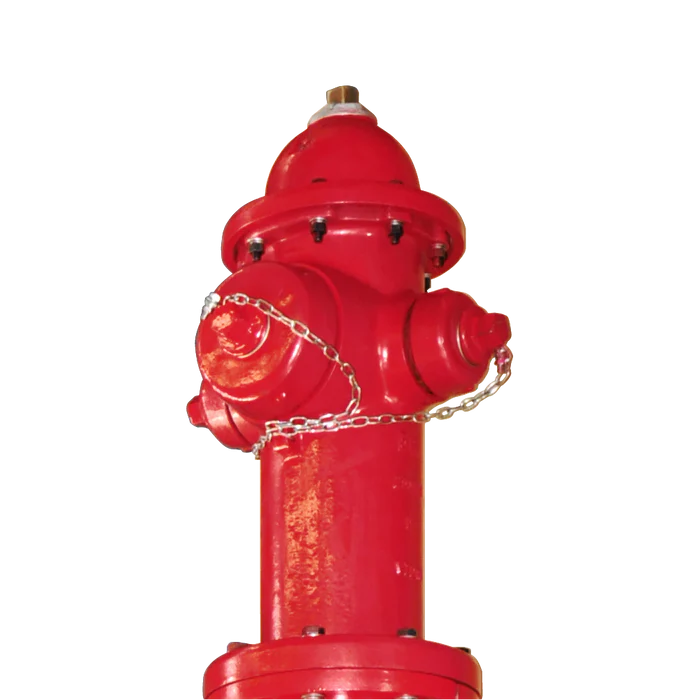

Fire Hydrant Dry Type
Arita HYD-15D Series dry barrel fire hydrant is designed with robust ductile iron material of its barrel section, nozzle section, bonnet and base. Complete with the reliable safety flange and stainless steel stem coupling, it is convenient for repair if collision occurs and ensure no leakage. Main valve of the hydrant can easily removed from the bonnet flange or ground line flange.

Certification: UL/FM
Model: HYD15 Series
Design Standard: ANSI / AWWA C502
Pressure Rating: 250 PSI
Body: Ductile Iron
Body Coating: Epoxy Resin Fusion Bonded
Fire Truck Steamer Pumper Outlet: 4-1/2″-4NH, also available 4″-4NH
Main Valve: 5-1/4″
Inlet Flange: 6″
Flange Connector: ASME B16.5 Class150
Depth Option: 3′, 3’6″, 4′, 4’6″, 5′, 5’6″, 6′, 6’6″, 7′
