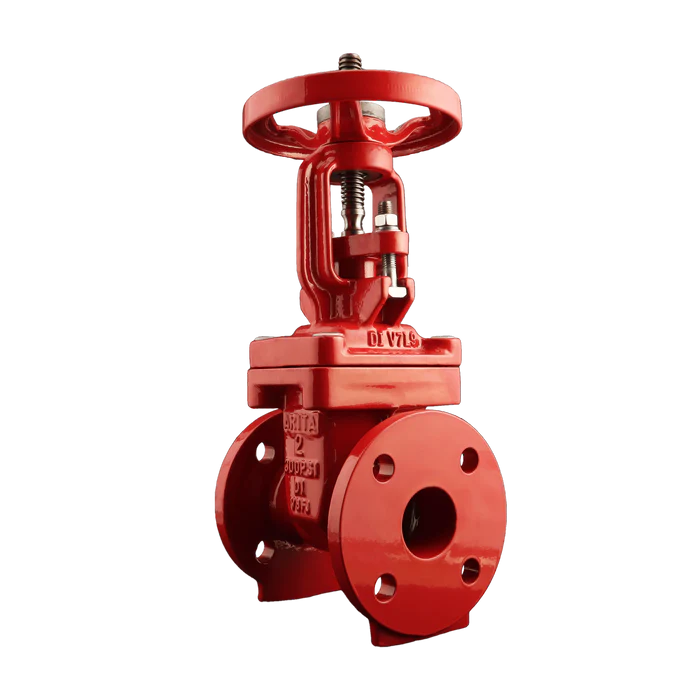

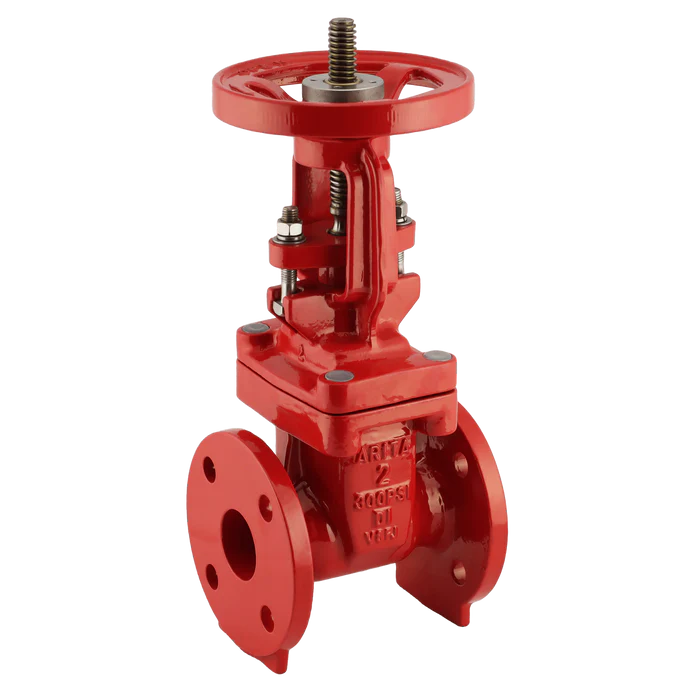

Fire Protection Resilient Seat OS&Y Gate Valve Flange End

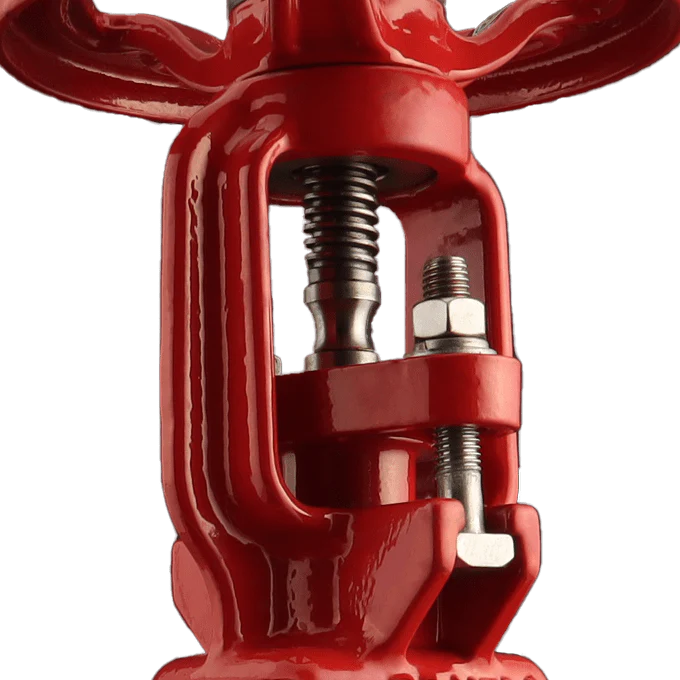

Outside stem and yoke rising stem gate valve by Arita Fire Solutions, with full encapsulated EPDM coated wedge design to ensure drop-tight sealing and reduction of wear and jamming. Customary stem notch for switch installation and two factory plugged tapping bosses on valve body allows additional on-site applications.

Certification: UL/FM
Model: RGA33 Series
Design Standard: AWWA C509/C515
Size: 2″-12″
Rating: 300 PSI
Body: Ductile Iron
Bonnet: Ductile Iron
Body/Bonnet Coating: Epoxy Resin Fusion Bonded
Stem: Stainless Steel 304
Wedge: EPDM Coated Ductile Iron
Packing PTFE
Gasket: EPDM Rubber
O-Ring: EPDM Rubber
Stem Nut: Bronze
Bolt, Nut, Plug: Stainless Steel 304
Connection: Flange End
